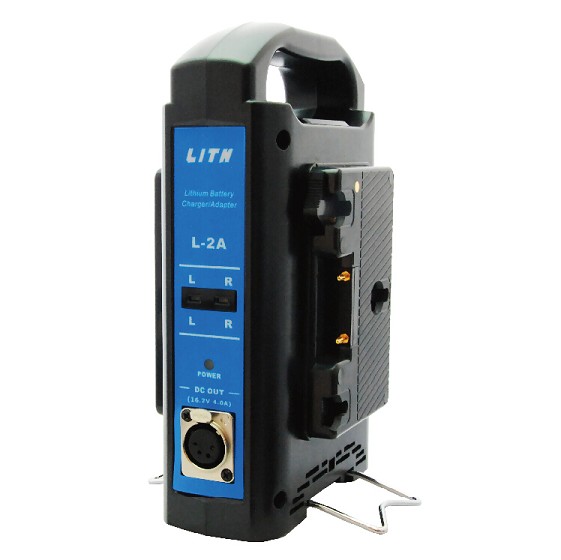

L-2A Gold Mount Charger/Adaptor
L-2A Gold Mount Charger/Adaptor
◆Simultaneous 2-channel charging for both channels.

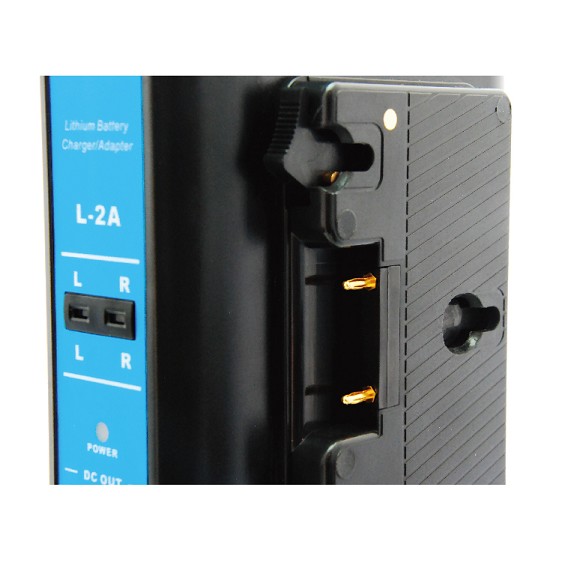

◆Charging of Li-ion battery is done through Gold Mount plate.
◆It can also be used as DC adapter, charger and adapter function can work at the same time.

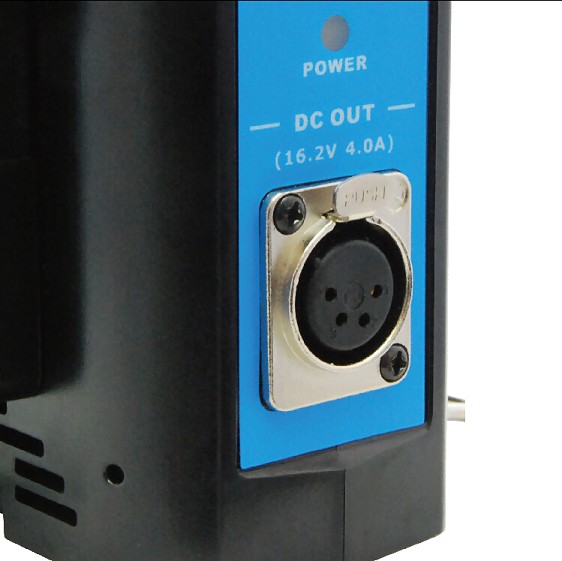

◆Adapter output is 16.2V 4.0A.

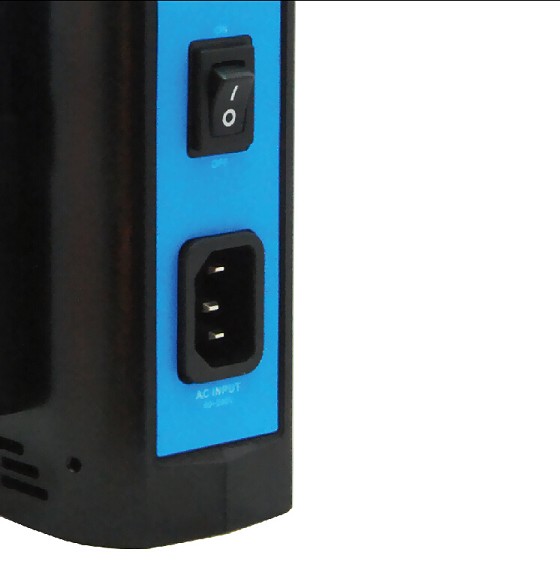

◆Universal AC input voltage for worldwide operation.
Warranty Period: 1 years conditional.
|
AC Input |
90~240V 47~63Hz |
|
Output Charging Terminals 1 & 2 |
16.8V 2.6A |
|
DC Output |
16.2V 4.0A |
|
Net Weight |
990g |
|
Storage Environment |
-20°C~55°C 45%~75%RH (<1year) |
|
Working Environment |
-10°C~45°C <85%RH |
|
2AB: Applicable to 3 STUD Li-ion batteries. |
|
